E’FRAME® CONCEALED CEILING E 50

E’FRAME<sup>®</sup> CONCEALED CEILING E 50

E’FRAME® CONCEALED CEILING E 50

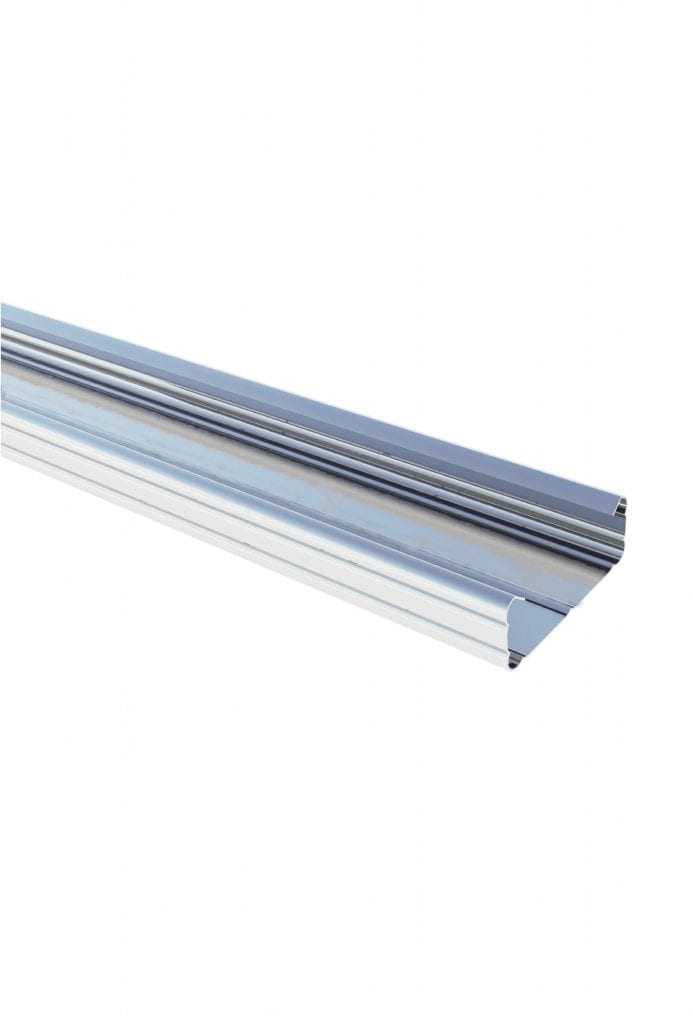

The E’FRAME® Concealed Ceiling E50 metal ceiling frame system has one profile design. This system provides easy installation for optimal results with L / 240 * deflection limits performance.

*The permissible standard provisions for sagging limit.

Tipe EC 5035

  • Thickness 0.35 mm
  • Length 4000 mm
  • Dimension 14×35 mm
  • Tipe EC 30045

Thickness 0.45 mm

  • Length 4000 mm
  • Dimension 14 x 35 mm
  • 40 mm cross-sectional width
  • Ideal for mounting in broad cross-sections
  • Features a single profile design for minimizing leftover material
  • We use a One-click connector, the most practical, fast, and safe connector system technology
  • Made from the best quality materials
  • Rust-resistant and termite-proof
  • Compliant with L / 360 deflection limit

Can be installed as a ceiling frame that requires a high level of safety performance, like public space, shopping centers, function rooms, hospitals, offices, and others.
